40Khz Portable Ultarsonic Fabric Cutter for Non- Woven Mask Cutting and Sealing
Description:
40Khz ultrasonic cutting machine is a kind of equipment that uses ultrasonic energy for cutting and processing. Its biggest feature is that cutting does not require cutting edges. The principle of ultrasonic cutting is to convert 50/60Hz current into 40KHz electric energy through an ultrasonic generator. It is converted into mechanical vibration of the same frequency, and then the mechanical vibration is transmitted to the cutting knife through a set of amplitude modulator device that can change the amplitude. The cutting knife transfers the received vibration energy to the cutting surface of the workpiece to be cut. In this area, the vibration energy is used to cut the fabric by activating the molecular energy of the fabric and opening the molecular chain.
Specifications:
| Item No | QR-C40A |
| Power | 100W |
| Generator | Analog generator |
| Frequency | 40KHZ |
| Voltage | 220V or 110V |
| Handle Dimension | Φ32*170 |
| Generator Dimension | 155*265*170mm |
| Gross weight | 5Kg |
| Replacement blade | 25pcs |
Features:
1. Labor-saving, specially designed processing strength is more than the same level products, reducing the operator's effort.
2. Time-saving, high-speed vibration of 30,000 times per second, self-control of output, higher efficiency
3. Power-saving, original and powerful, power-saving mode, the knife handle is not easy to get hot, to meet various work requirements.
4. Stronger, the front end adopts a clamping tool, the blade grip is strong and even.
5. More beautiful, with the help of ultrasonic vibration, the cut surface is beautiful and neat
6. Safer, automatic detection system, warning when failure
40Khz Portable Ultarsonic Fabric Cutter for Non- Woven Mask Cutting and Sealing
Product Tags:
|
|

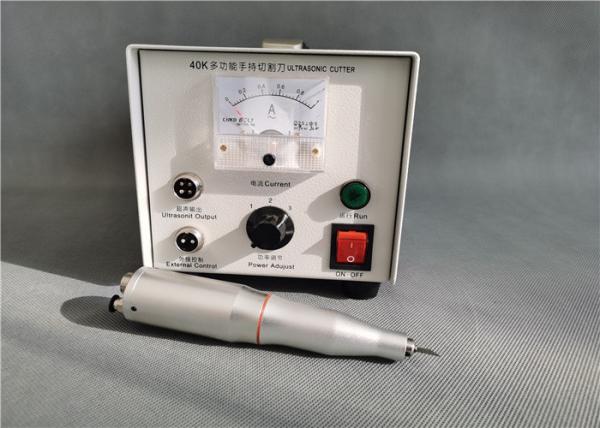

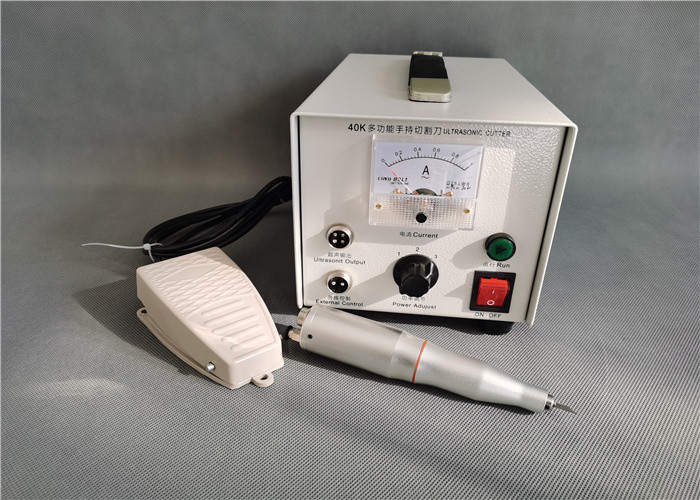

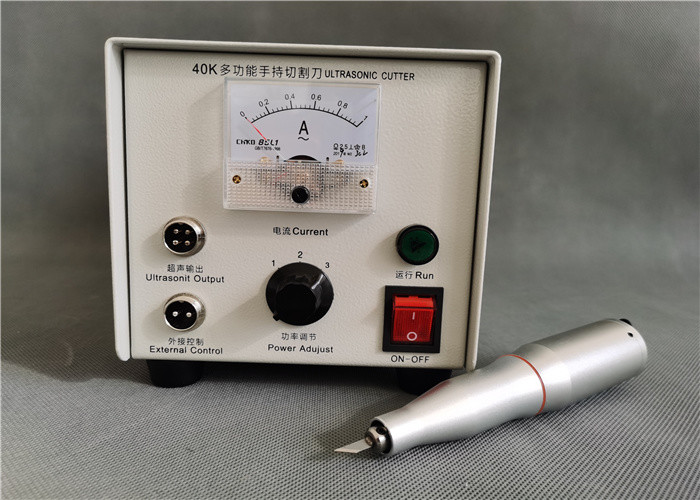

40khz Portable Ultrasonic Fabric Cutter For Nonwoven Mask Cutting And Sealing Images
|
