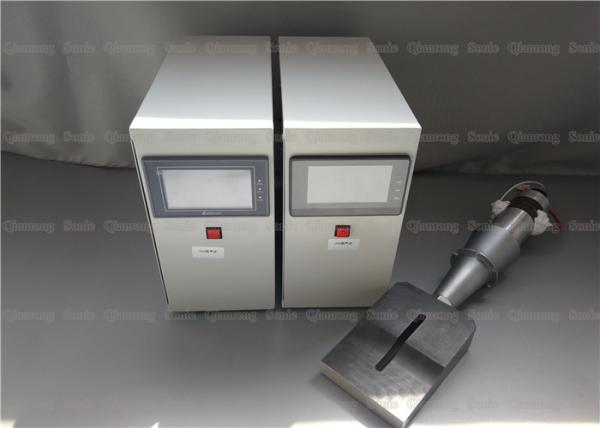

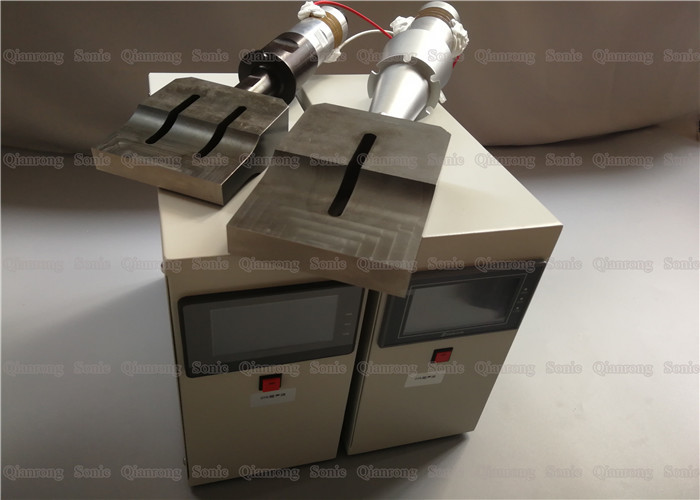

High Power 2600w Ultrasound Parts for Non Woven Facw Mask Making Equipment by Steel Welding Horn
Description:

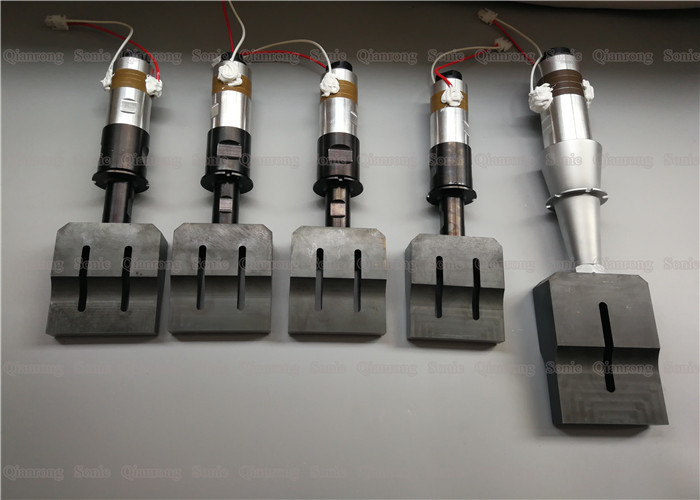

QRsonic is a professional manufacturer that provides core ultrasonic technology for mask machine manufacturers. The 15K and 20K ultrasonic equipment roller welding heads provided by our company are made of special alloy steel materials and have undergone a special heat treatment process. They have the characteristics of wear resistance and long service life. It does not require preheating and continuous processing during operation. It is fast and mass-produced. It does not emit smoke or sparks during processing, and does not damage the edge of the fabric. The machine is easy to operate and easy to understand.
Specifications:
| Classification | QR-15K | QR-20K |
| Frequency | 15Khz | 20Khz |
| Power | 2600w | 1500w |
| Voltage | 220V | 220V |
| Generator | Digital generator | Digital generator |
| Material of Horn | Steel | Steel |
| Dimension of horn | 120*25mm | 110*20mm |
| Net weight of horn | 11kgs | 5.5kgs |
| Dimension of generator | 250*150*300mm | 250*150*300mm |
| Net weight of generator | 6kgs | 6kgs |
| Package | Wooden case | Wooden case |
| Application | Non woven mask welding | Non woven mask welding |
Advantages:
1. High stability: due to the use of hot-melt effect, no need to use needle thread, the product has increased water resistance, lighter weight and easier to fold.
2. Welding and cutting synchronization: The equipment is not only suitable for continuous stitching, but also can cut textiles while welding, and realize automatic edge banding.
3. No thermal radiation: energy penetrates the material layer for welding, there is no thermal radiation, and heat will not be transferred to the product during continuous stitching, which is particularly beneficial for the packaging of heat-sensitive products.
4. Controllable welding seam: The cloth is pulled by the welding head and the pressure roller, passing through it, and the cloth is welded with ultrasonic waves. The size of the weld seam and the embossing can be changed by changing the pressure roller, which is more flexible and convenient.
5. Wide range of applications: All thermoplastic (softened after heating) fabrics, special tapes, and films can be welded using ultrasonic seamless stitching equipment, and the rollers are made of hardened steel to extend the service life.
