20Khz Ultrasonic Mask Sealing Machine With Continuous Ultrasound Sealing

Brand Name : QRsonic

Model Number : QR-5020-4BZ-ZB

Certification : CE

Place of Origin : China

MOQ : 1 pcs

Price : Negotation

Payment Terms : T/T, Western Union

Supply Ability : 2000pcs per month

Delivery Time : 3 workdays

Packaging Details : Packed in carton

Products Name : Ultrasonic Oscillator

Output Power : 2000w

Frequency : 20khz

Ceramic disc Diameter : 50mm

Qty of ceramic discs : 4pcs

Capacitance : 11-16nf

Connected Screw : M12*1.75

Application : Ultrasonic Mask Making Machine

Contact Now

20Khz Ultrasonic Mask Sealing Machine with Continuous Ultrasound Sealing

Description:

The structure of the ultrasonic transducer includes the shell degree, the matching layer that is the acoustic window, the piezoelectric ceramic disc transducer, the backing, and the lead-out cable. The piezoelectric wafer is an important part of the transducer. The vibration of the piezoelectric wafer The frequency is the operating frequency of the device, and the frequency mainly depends on the thickness of the wafer and the propagation speed of the ultrasonic wave in the wafer material.

Specifications:

Model QR-5020-4BZ-ZB
Frequency 20khz
Output power 2000 watt
Ceramic disc Diameter 50mm
Qty of ceramic discs 4pcs
Capacitance 11-16nf
Application Plastic welding machine

Parameters:

Item No.

Connect screw (Size)

Ceramic diameter (mm)

Quantity of Ceramic (pc)

 Capacitance

Input power (W)
Yellow Grey Black
6015-4BZ-BZ M16 *1 60 4 9000-10000 10000-11000 12500-13500 2600
6015-4BZ-LR M16 *1 60 4 9000-10000 10000-11000 12500-13500 2600
6015-4BZ-RS M16 *1 60 4 9000-10000 10000-11000 12500-13500 2600
7015-4BZ-BZ M16 *1 70 4 12500-14000 / / 3600
6015-4BD-BZ M16 *1 60 4 9000-10000 10000-11000 / 2600
6015-6BD-BZ M16 *1 60 6 19000-20500 / 23000-25000 3600
7015-4BD-BZ M16 *1 70 4 12500-14000 / / 3600
6015-4BZ-LS M16 *1 60 8 18000-20000 20000-22000 / 4200
4515-4YZ-SS M16 *1 45 8 / / 25000-27000 2400
4515-4JZ-SS M16 *1 45 8 19000-21000 / / 2800
5015-4BZ-SZ M16 *1 50 8 22000-24000 / / 3600
5020-4CZ-BJ 3/8-24UNF 50 4 11000-12000 13000-14000 14500-16000 1500
5020-4BZ-BJ 3/8-24UNF 50 4 11000-12000 13000-14000 14500-16000 1500
5520-4BZ-BJ 3/8-24UNF 55 4 10500-11500 / / 1800
5020-4BZ-BZ 3/8-24UNF 50 4 11000-12000 13000-14000 14500-16000 1500
5020-4HZ-BJ 3/8-24UNF 50 4 / / 11000-12000 1500
3820-4BZ-SS 3/8-24UNF 38 8 13000-14500 / / 1800
5020-4BZ-LS 1/2-20UNF 50 8 23000-25000 26000-28000 / 2800
3028-2BZ-BT / 30 2 2800-3300 3300-3800 / 400
3828-4BZ-BJ M8*1 38 4 7200-8200 / 10000-12000 800
3828-4BZ-BJL M8*1 38 4 7200-8200 / 10000-12000 800
3828-2BZ-BJL M8*1 38 2 3700-4200 / / 500
3030-4BZ-SJL M10 30 4 / 6200-7200 / 700
3030-4BZ-LJL M10 30 4 / 6200-7200 / 700
3030-4BZ-BJ M8 30 4 / 6200-7200 / 700
3535-4BD-II M8 35 4 6600-7400 / 9200-10200 800
3035-4BZ-BJL M8 30 4 5500-6200 / / 700
3040-4BZ-BJ M8 30 4 5100-5800 / 6500-7500 500
1560-2BZ-BJ / 15 2 / / 700-850 100
1070-2BZ-BJ / 10 2 700-800 / / 100

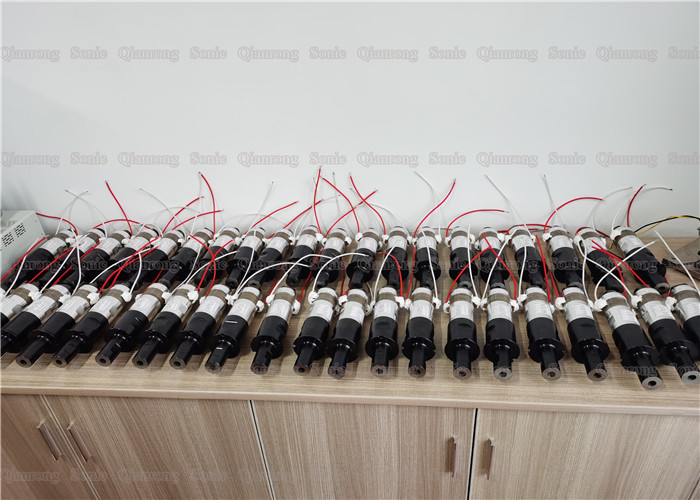

20Khz Ultrasonic Mask Sealing Machine with Continuous Ultrasound Sealing

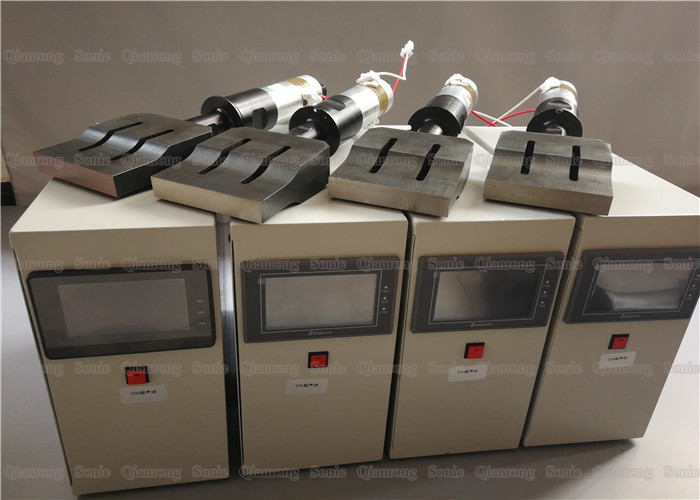

20Khz Ultrasonic Mask Sealing Machine With Continuous Ultrasound Sealing

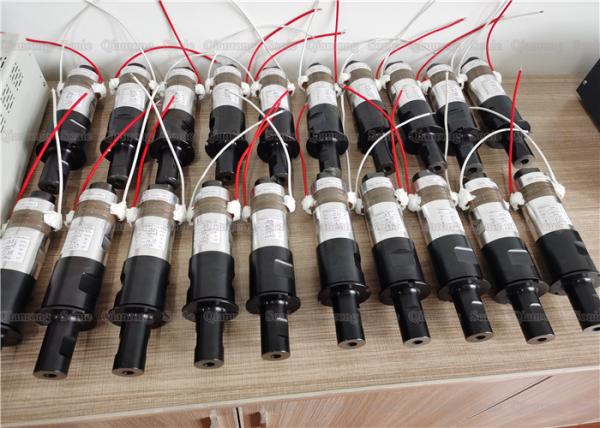

20Khz Ultrasonic Mask Sealing Machine With Continuous Ultrasound Sealing
