28Khz Ultrasonic Soldering Transducer With 4pcs Ceramics Welding Horn 8mm Tip

Brand Name : QRsonic

Model Number : QR-2528-4FZ-BT

Certification : CE

Place of Origin : China

MOQ : 1 pcs

Price : Negotation

Payment Terms : T/T, Western Union

Supply Ability : 2000pcs per month

Delivery Time : 3 workdays

Packaging Details : Packed in carton

Products Name : Ultrasonic Oscillator

Output Power : 800w

Frequency : 28khz

Ceramic disc Diameter : 25mm

Qty of ceramic discs : 4pcs

Capacitance : 3900-4300pf

Connected Screw : M8*1

Application : Ultrasonic Tea Bag Spot Welder

Contact Now

High Frequency 28Khz Ultrasonic Soldering Transducer with 4pcs Ceramics Welding Horn 8mm Tip

Description:

28K ultrasonic spot welding system is specially designed to weld the movement of tea bag machines, especially for the welding of triangular tea bags. Ultrasonic spot welding gun adopts ultrasonic plastic welding technology.

Due to different processing methods and requirements, the working modes of ultrasonic transducers can be roughly divided into continuous work (metal welding) and pulsed work (plastic welding). Different working modes have different requirements for the transducer. Generally speaking, continuous operation has almost no pause time, but the working current is not very large. Pulse operation is intermittent, with pauses, but the instantaneous current is large, and the power in both states is very large.

Specifications:

Model QR-2528-4FZ-BT
Frequency 28 khz
Output power 1200 watt
Joint bolt M18*1
Ceramic disc Diameter 25mm
Qty of ceramic discs 4pcs
Capacitance 3.9-4.3nf
Application Tea Bag Spot Welder

Parameters:

Item No.

Connect screw (Size)

Ceramic diameter (mm)

Quantity of Ceramic (pc)

Resonance frequency (khz)

 Capacitance

Input power (W)
Yellow Grey Black
1-6015-4BZ-BZ M16 *1 60 4 15 9000-10000 10000-11000 12500-13500 2600
2-6015-4BZ-LR M16 *1 60 4 15 9000-10000 10000-11000 12500-13500 2600
3-6015-4BZ-RS M16 *1 60 4 15 9000-10000 10000-11000 12500-13500 2600
4-7015-4BZ-BZ M16 *1 70 4 15 12500-14000 / / 3600
5-6015-4BD-BZ M16 *1 60 4 15 9000-10000 10000-11000 / 2600
6-6015-6BD-BZ M16 *1 60 6 15 19000-20500 / 23000-25000 3600
7-7015-4BD-BZ M16 *1 70 4 15 12500-14000 / / 3600
8-6015-4BZ-LS M16 *1 60 8 15 18000-20000 20000-22000 / 4200
9-4515-4YZ-SS M16 *1 45 8 15 / / 25000-27000 2400
10-4515-4JZ-SS M16 *1 45 8 15 19000-21000 / / 2800
11-5015-4BZ-SZ M16 *1 50 8 15 22000-24000 / / 3600
12-5020-4CZ-BJ 3/8-24UNF 50 4 20 11000-12000 13000-14000 14500-16000 1500
13-5020-4BZ-BJ 3/8-24UNF 50 4 20 11000-12000 13000-14000 14500-16000 1500
14-5520-4BZ-BJ 3/8-24UNF 55 4 20 10500-11500 / / 1800
15-5020-4BZ-BZ 3/8-24UNF 50 4 20 11000-12000 13000-14000 14500-16000 1500
16-5020-4HZ-BJ 3/8-24UNF 50 4 20 / / 11000-12000 1500
17-3820-4BZ-SS 3/8-24UNF 38 8 20 13000-14500 / / 1800
18-5020-4BZ-LS 1/2-20UNF 50 8 20 23000-25000 26000-28000 / 2800
19-3028-2BZ-BT / 30 2 28 2800-3300 3300-3800 / 400
20-3828-4BZ-BJ M8*1 38 4 28 7200-8200 / 10000-12000 800
21-3828-4BZ-BJL M8*1 38 4 28 7200-8200 / 10000-12000 800
22-3828-2BZ-BJL M8*1 38 2 28 3700-4200 / / 500
23-3030-4BZ-SJL M10 30 4 30 / 6200-7200 / 700
24-3030-4BZ-LJL M10 30 4 30 / 6200-7200 / 700
25-3030-4BZ-BJ M8 30 4 30 / 6200-7200 / 700
26-3535-4BD-II M8 35 4 35 6600-7400 / 9200-10200 800
27-3035-4BZ-BJL M8 30 4 35 5500-6200 / / 700
28-3040-4BZ-BJ M8 30 4 40 5100-5800 / 6500-7500 500
29-1560-2BZ-BJ / 15 2 60 / / 700-850 100
30-1070-2BZ-BJ / 10 2 70 700-800 / / 100

High Frequency 28Khz Ultrasonic Soldering Transducer with 4pcs Ceramics Welding Horn 8mm Tip

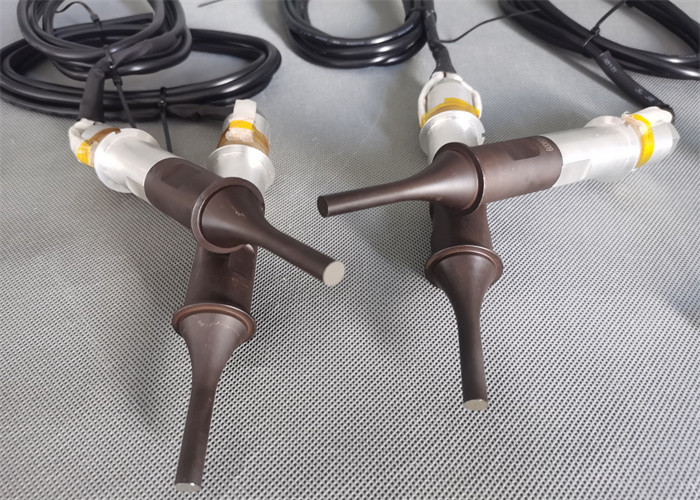

28Khz Ultrasonic Soldering Transducer With 4pcs Ceramics Welding Horn 8mm Tip

28Khz Ultrasonic Soldering Transducer With 4pcs Ceramics Welding Horn 8mm Tip
