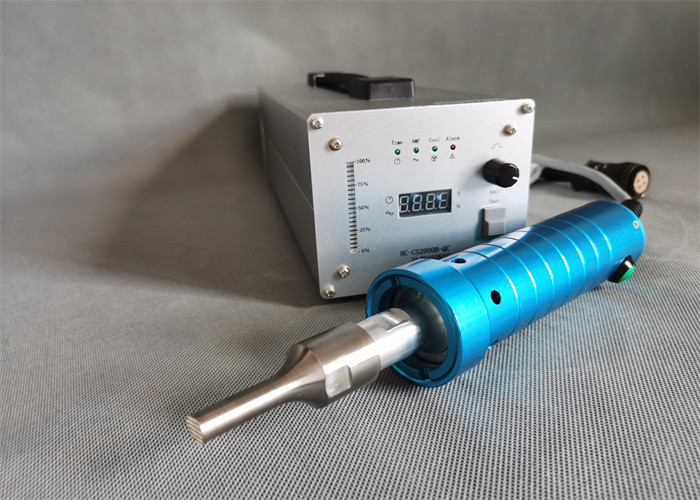

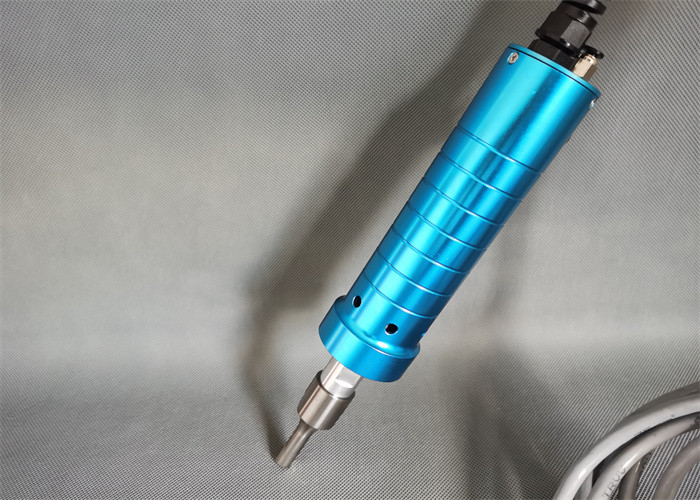

28Khz Ultra 1200w High Power Spot Welder for Automatic Mask Ear Band Welding Machine
Description:
Ultrasonic generator converts the current of 50/60 Hz to 28kHz. The sensor converts it into mechanical motion of the same frequency again and transmits it to the welded joint through an amplitude modulator. The welding joint transfers the received vibration energy to the non-woven mask joint to be welded, and the vibration energy is converted into heat energy to melt the non-woven fabric through friction. Both sides of the non-woven fabric are solidified in the form of molecular chains to obtain a perfect combination, thereby achieving the welding effect. The equipment using this principle includes: mask ear band spot welding machine, non-woven mask welding machine, non-woven mask spot welding machine, non-woven mask sewing machine, ultrasonic mask lace machine, ultrasonic mask spot welding machine, medical mask spot welding Machine and automatic mask ear band welding machine.
Specifications:
| Item No | QR-W28H |
| Power | 1200W |
| Generator | Digital generator |
| Frequency | 28KHZ |
| Voltage | 220V or 110V |
| welding head | Titanium |
| Gross weight | 6Kg |
Parameters:
| Classification | Pistol Type | Pen Type |
| Frequency
(Khz) | 35 | 28 | 28 | 30 | 20 | 28 | 28 | 30 |
| Power(w) | 500 | 300 | 1200 | 800 | 900 | 300 | 1200 | 800 |
| Welding Head | <10mm | <10mm | <10mm | <12mm | <12mm | <10mm | <10mm | <12mm |
| Dia of shell | 51mm | 51mm | 51mm | 64mm | 64mm | 40mm | 45mm | 60mm |
| The handles size | 100mm*45mm*32mm | — | — | — |
| Weight | 0.5kg | 0.5kg | 0.5kg | 1.2kg | 1.2kg | 0.4kg | 0.5kg | 1.0kg |
| Digital Generator | ● | - | ● | ● | ● | ● | - | ● |
| Analog Generator | ● | ● | ● | ● | ● | ● | ● | ● |
| Application | ABS, HIPS,PMMA,MPPO | PVC,PP,PE | Aldehyde-resin, PC | PC,PSU,PA | Nylon, PE,PBT | PVC,PP,PE | Aldehyde-resin, PC | PC,
PSU,PA |
| Welding Type | Rivet Welding, Spot Welding, Embossed Welding |
Features:
1. The latest externally excited ultrasound circuit, which can continuously and uninterrupted ultrasound, automatically track the frequency and automatically resonate point and power control, without frequent manual adjustment of energy
2. Working method: simple and convenient operation with foot pedal, the equipment does not heat up, 6-10 pieces of ear straps per minute (according to the speed of the workers' hands and feet), suitable for any mask shape.
3. Ultrasonic frequency converter adopts lead zirconate titanate crystal piezoelectric frequency converter, sealed to isolate water vapor and corrosive gas
4. Turn on/off pulse timer, adjust power accurately to ensure high-strength welding
5. Unique automatic amplitude and pulse compensation function to ensure that the probe amplitude does not change due to load changes during the ultrasound process
6. The transducer adopts the largest ceramic chip supplier in China, with stable impedance, high ultrasonic efficiency, and it is not easy to heat up after working for a long time
7. The ultrasonic probe is made of TC4 titanium alloy, which is not easy to wear and cavitation when used for a long time
8. The equipment can work intermittently or run without load to meet different welding requirements
9. The overall equipment is manufactured by mold opening, small size, high efficiency, and beautiful.

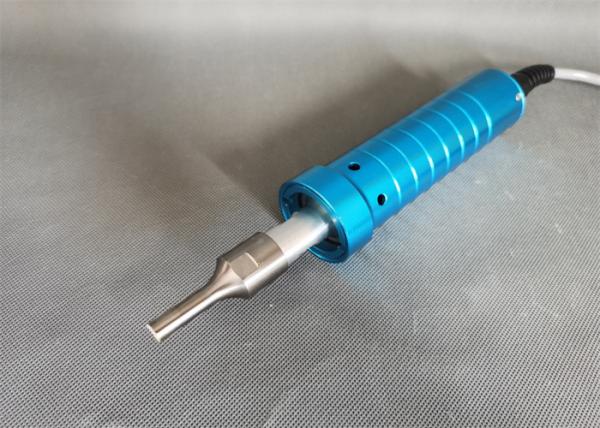

28Khz Ultra 1200w High Power Spot Welder for Automatic Mask Ear Band Welding Machine
