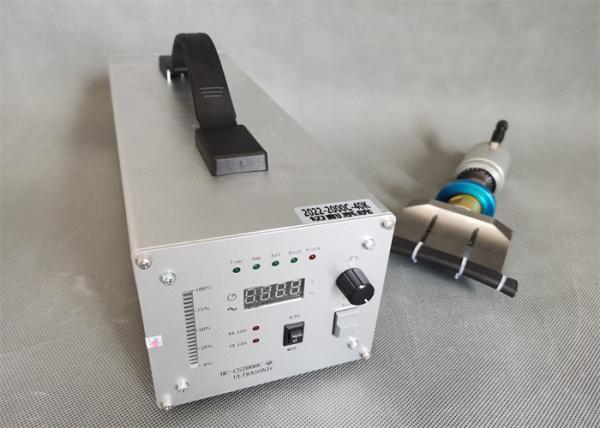

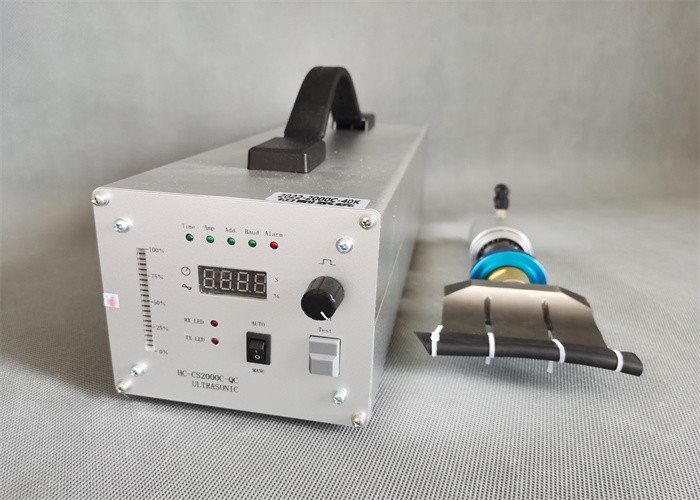

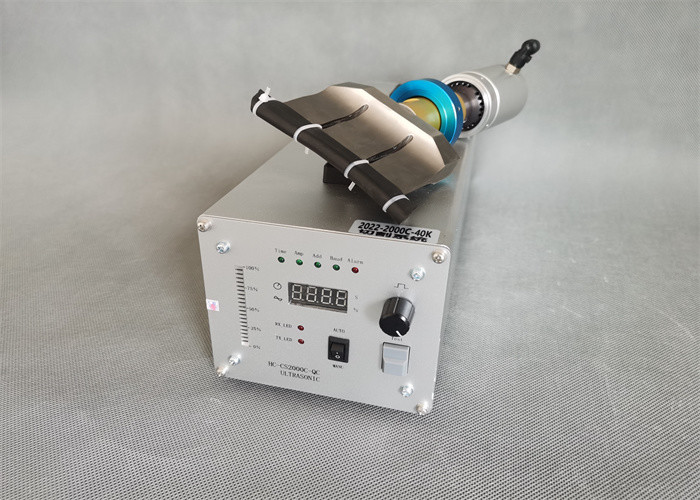

40Khz Ultrasonic Rubber Cutting Device with Digital Generator
Description:
40Khz Ultrasonic rubber cutting machine heats and melts the part of the material to be cut through the energy of the ultrasonic wave, so as to achieve the purpose of cutting the material. Therefore, ultrasonic cutting does not require a sharp edge, nor does it require a lot of pressure, and it will not cause chipping and damage of the material to be cut. At the same time, due to the ultrasonic vibration of the cutting blade, the frictional resistance is very small, and the material to be cut is not easy to stick to the blade. This is especially effective for viscous and elastic materials, frozen materials such as food, rubber materials, objects that are inconvenient to pressurize, etc.
Specifications:
| Item No | QR-FC40H |
| Power | 800W |
| Generator | Digital generator |
| Frequency | 40KHZ |
| Voltage | 220V or 110V |
| Cutter Dimension | 82.5mm |
| Weight of blade | 1.5kgs |
| Gross weight | 8Kgs |
Comparison between Traditional Cutter and Ultrasonic Cutter:
| Traditional Cutter | Ultrasonic Cutter |
| A sharp-edged tool that presses against the material being cut. | The ultrasonic energy is concentratedly input to the cutting portion of the material to be cut. |
| The pressure is concentrated at the cutting edge, the pressure is very large, exceeding the shear strength of the material being cut, and the molecular bonding of the material is pulled apart and cut. | Under the action of huge ultrasonic energy, this part softens and melts instantly, and the strength is greatly reduced. The purpose of cutting the material can be achieved with a small amount of force |
| The cutting tool has a sharp edge and the material itself is subject to relatively high pressure. | High stability, environmental protection and no pollution |
| It is not good for soft and elastic materials, and it is more difficult for viscous materials. | The biggest feature is that there is no traditional cutting edge. |
Features:
1. Labor-saving, specially designed processing strength is more than the same level products, reducing the operator's effort.
2. Time-saving, high-speed vibration of 30,000 times per second, self-control of output, higher efficiency
3. Power-saving, original and powerful, power-saving mode, the knife handle is not easy to get hot, to meet various work requirements.
4. Stronger, the front end adopts a clamping tool, the blade grip is strong and even.
5. More beautiful, with the help of ultrasonic vibration, the cut surface is beautiful and neat
6. Safer, automatic detection system, warning when failure
