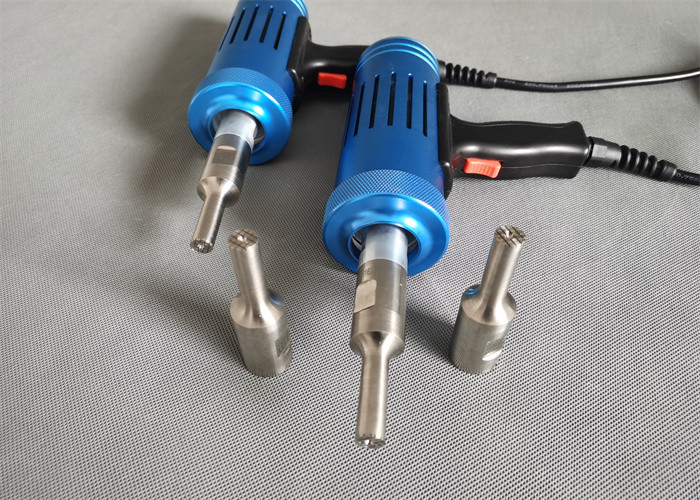

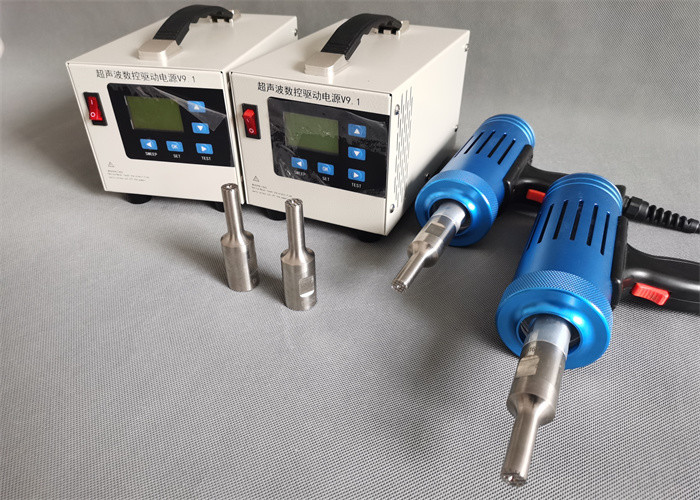

Looking for 28Khz Ultrasonic Portable Welder Gun with Digital Drivers for Auto Plastic Parts
Description:
The hand-held ultrasonic spot welder can be used for the welding, riveting, spot welding of the film, fabric, thermoplastic products and the inlaying and blanking process between the metal parts and the plastic parts.
When ultrasonic waves are applied to the surface of a thermoplastic, high-frequency vibrations of tens of thousands of times per second are generated, and ultrasonic energy is transmitted to the weld zone through the weldment, which causes local high temperatures. Due to the poor thermal conductivity of the plastic, heat is concentrated in the weld zone, causing the plastic surface to melt rapidly, and after a certain pressure, it is integrated into one.
Principle:
The principle of 28khz Ultrasonic spot welder is to convert 50/60 Hz current into 28kHz electric energy through ultrasonic generator. Ultrasonic welding machine principle, fast, economical, efficient, environmentally friendly welding process, especially in the operation of thermoplastic parts and other workpieces, especially highlighting the efficiency of the work, the current principle of ultrasonic welding machine is widely used in The synthesis of plastic products and plastic materials, the synthesis of metal parts and metal materials, as well as other materials and industrial and process operations.
Specifications:
| Item No | QR-W28GD |
| Power | 800W |
| Generator | Digital generator |
| Frequency | 28KHZ |
| Voltage | 220V or 110V |
| welding head | Aluminum or Titanium |
| Net weight | 5Kgs |
Parameters:
| Classification | Pistol Type | Pen Type |
| Frequency
(Khz) | 35 | 28 | 28 | 28 | 20 | 28 | 28 | 28 |
| Power(w) | 500 | 300 | 700 | 800 | 900 | 300 | 700 | 800 |
| Welding Head | <10mm | <10mm | <10mm | <12mm | <12mm | <10mm | <10mm | <12mm |
| Dia of shell | 51mm | 51mm | 51mm | 64mm | 64mm | 40mm | 45mm | 60mm |
| The handles size | 100mm*45mm*32mm | — | — | — |
| Weight | 0.5kg | 0.5kg | 0.5kg | 1.2kg | 1.2kg | 0.4kg | 0.5kg | 1.0kg |
| Digital Generator | ● | - | ● | ● | ● | ● | - | ● |
| Analog Generator | ● | ● | ● | ● | ● | ● | ● | ● |
| Application | ABS, HIPS,PMMA,MPPO | PVC,PP,PE | Aldehyde-resin, PC | PC,PSU,PA | Nylon, PE,PBT | PVC,PP,PE | Aldehyde-resin, PC | PC,
PSU,PA |
| Welding Type | Rivet Welding, Spot Welding, Embossed Welding |
