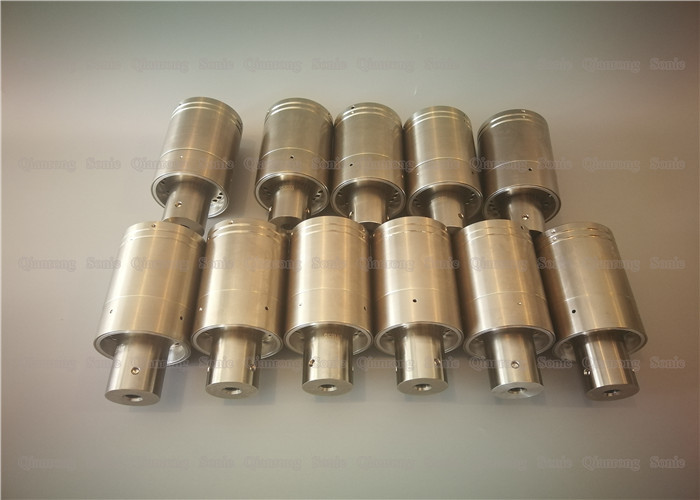

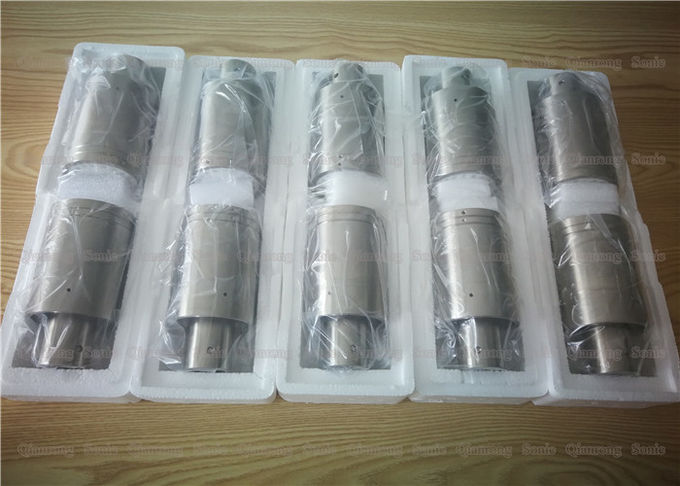

Branson CJ20 Replacement Ultrasound Converter for 2000 Series Plastic Welder
Description:
Ultrasonic transducer is a device that realizes mutual conversion between electric energy and sound energy by piezoelectric effect, also known as piezoelectric transducer. The transducer is composed of a central piezoelectric ceramic element, front and rear metal cover plates, pre-stressed screws, electrode sheets, and insulating tubes. Ultrasonic transducers are used in almost all ultrasonic equipment. Qianrong Ultrasonic Equipment is the source manufacturer of ultrasonic titanium alloy transducers and core components.
The converter is aptly named because it receives electrical energy from the power supply and converts it into mechanical vibrations. Branson CJ-20 converter (101-135-059) replacement used in all 20KHz 2000, 2000X and DCX series IW, actuator and assembly stand systems that delivers rugged quality and superior value.
Ultrasonic Converters and Ultrasonic Transducers are one in the same. There is one Ultrasonic OEM, Dukane Corporation, that uses the term Transducer. All of the other ultrasonic OEM manufactures such as Branson, Sonics and Materials, Rinco, Telesonics and Herrmann refer to these as Converters or Konverters. QRsonic can supply ultrasonic transducer according to customer's requirements.
Specifications:
| Model | QR-5020-CJ20 |
| Frequency | 20 khz |
| Output power | 3300 watt |
| Joint bolt | 1/2-20UNF |
| Ceramic disc Diameter | 50mm |
| Qty of ceramic discs | 6pcs |
| Capacitance | 18-20nf |
| Amplitude | 10 um |
| Application | Plastic welding machine |
Specification:
| Item No | Connect screw (Size) | Ceramic diameter (mm) | Quantity of Ceramic (pc) | Resonance frequency (khz) | Input Power | Machine |
| 1-QR-BCJ20 | 1/2-20UNF | 50 | 6 | 20 | 3300 | Branson 2000 series |
| 2-QR-BCR20 | 1/2-20UNF | 50 | 6 | 20 | 3300 | Branson 2000 series |
| 3-QR-B502 | 1/2-20UNF | 50 | 4 | 20 | 2000 | Branson 5170, 8800 |
| 4-QR-B402 | 1/2-20UNF | 40 | 4 | 20 | 900 | Branson 8200, 8400 |
| 5-QR-B803 | 1/2-20UNF | 50 | 4 | 20 | 2000 | Branson 8700 |
| 6-QR-B902J | 1/2-20UNF | 50 | 4 | 20 | 900 | Branson 910W or IW+ |
| 7-QR-B4TH | M8 | 25 | 4 | 40 | 800 | 40khz Branson welders |
| 8-QR-B4TR | M8 | 25 | 4 | 40 | 800 | 40khz Branson welders |
| 9-QR-D20 | 1/2-20UNF | 50 | 2 | 20 | 2000 | 20khz Dukane Heavy Duty |
| 10-QR-D41S30 | 1/2-20UNF | 50 | 4 | 20 | 2000 | Dukane model 43A250, 43A255, 43D255, 43E255, 43A260, or 43B260 |
| 11-QR-D41C30 | 1/2-20UNF | 50 | 4 | 20 | 2000 |
| 12-QR-D110-3122 | 1/2-20UNF | 50 | 4 | 20 | 2000 |
| 13-QR-D110-3168 | 1/2-20UNF | 50 | 4 | 20 | 2000 | Dukane Model 43B18 |
| 14-QR-D41C28 | M8 | 35 | 2 | 40 | 800 | 40khz Dukane welders |
| 15-QR-D41C29 | M8 | 35 | 2 | 40 | 800 | 40khz Dukane welders |
| 16-QR-R3510 | M8 | 25 | 4 | 35 | 800 | 35Khz Rinco Welders |
| 17-QR-R35 | M8*1.25 | 25 | 2 | 35 | 500 | 35khz Rico Welders |
| 18-QR-R20 | 1/2-20UNF | 50 | 2 | 20 | 1200 | |
| 19-QR-J3506 | M8 | 25 | 4 | 35 | 800 | |
| 20-QR-J3710 | M8 | 25 | 4 | 37 | 500 | CV231 |
| 21-QR-J3706-W1 | M8 | 25 | 4 | 37 | 500 | |
| 22-QR-J3706-W2 | M8 | 32 | 2 | 37 | 400 | CV3510 |
| 23-QR-T35 | M8 | 25 | 4 | 35 | 800 | 35khz Telsonic Machine |
| 24-QR-H20 | 1/2-20UNF | 50 | 6 | 20 | 3000 | |
Special Items can be customized.
