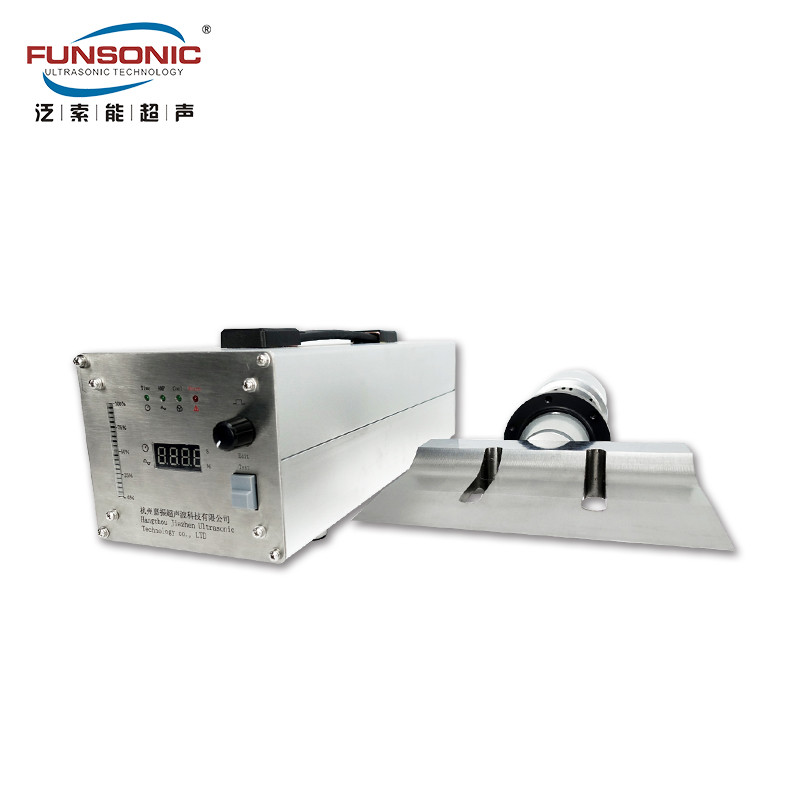

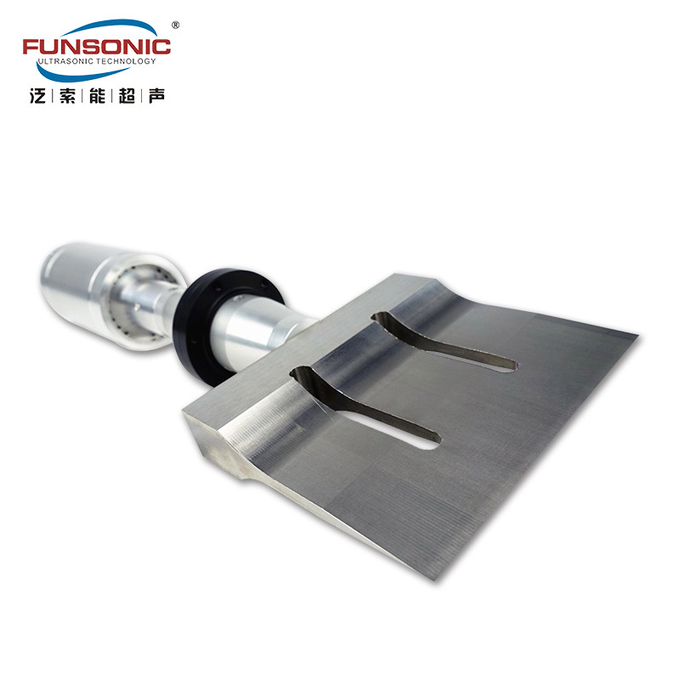

20Khz Ultrasonic Rubber Cutting Machine with 150mm Customized Titanium Blade
Description:
Ultrasonic cutting is completely different from traditional cutting. Ultrasonic cutting machine uses the energy of ultrasonic waves to melt the local heating of the material to be cut, thereby achieving the purpose of cutting the material.
The characteristics of ultrasonic cutting knives do not require sharp edges, do not require significant pressure, and will not cause the cutting material to shatter or rupture. The cutting blade is subjected to ultrasonic vibration and has particularly low frictional resistance, making it difficult for the cutting material to adhere to the blade. Especially effective for frozen, sticky, and elastic materials, food, rubber, or inconvenient objects. At the same time of cutting, the cutting part has fusion. The cutting area is completely sealed to prevent loose tissue (such as textile material burrs). The scope of use of ultrasonic cutting knives can also be expanded, such as digging holes, shoveling, scraping paint, carving, longitudinal cutting, etc.
Parameters:
| Model | FSC-CR20-150 |
| Name | 20Khz Ultrasonic Rubber Cutter |
| Frequency | 20Khz |
| Power | 2000w |
| Input Voltage | 220V±10%,50/60Hz |
| Cutter Materials | Alloy Steel or Titanium Alloy |
| Width of Blade | 150mm(can be customized) |
| Application | Rubber, Plastic Cutter |
Advantages:
1. High stability: During the operation of the ultrasonic generator, electromagnetic vibration is generated, which is converted into mechanical vibration and transmitted to the cutting blade and cutting material. Due to mechanical cutting, there is no need for sharp cutting edges, the blade wear is minimal, and the cutting head can be replaced on its own.
2. Safety and environmental protection: When cutting ultrasonic knives, the temperature of the blade is below 50 degrees Celsius, which will not produce smoke and odor, eliminating the risk of injury and fire during the cutting process.
3. Neat cutting: As ultrasonic waves cut through high-frequency vibrations, the material does not adhere to the surface of the blade, requiring only a small amount of pressure during cutting. Fragile and soft materials also do not deform or wear, and the fabric is cut and automatically sealed. It will not cause fragmentation.
4. Easy to operate: The cutting blade is connected to an ultrasonic generator, which is connected to a 220V power supply and can cut switches to support handheld and airborne cutting.
5. Wide application range: rubber, vulcanized latex, non vulcanized latex, food and various textile materials, as well as ultrasonic cutting of plastic sheets.
