Ultrasonic Benchtop Vacuum Coating System Enhance Production Line

Name: Ultrasonic Benchtop Vacuum Coating System Enhance Production Line
Brand: FUNSONIC
Price: 1 USD

Ultrasonic Benchtop Vacuum Coating System Enhance Production Line Manufactures

Brand Name : FUNSONIC

Model Number : FS620V

Certification : CE

Place of Origin : CHINA

MOQ : 1 UNIT

Price : Negotation

Payment Terms : T/T, Western Union

Supply Ability : 1000 unit per month

Packaging Details : Packed by Wooden Case

Production Name : Ultrasonic Precision Spraying Machine

Frequency : 20-200khz

Max Power : 1-15W

Continuous Spraying Volume Max : 20-1200ml/h/pcs，Scalable

Effective Spraying Width : 2-100mm/pcs，Scalable

Spray Uniformity : ≥95%

Solution Viscosity : ≤30cps

Input Voltage : 220V±10%/50-60Hz

Contact Now

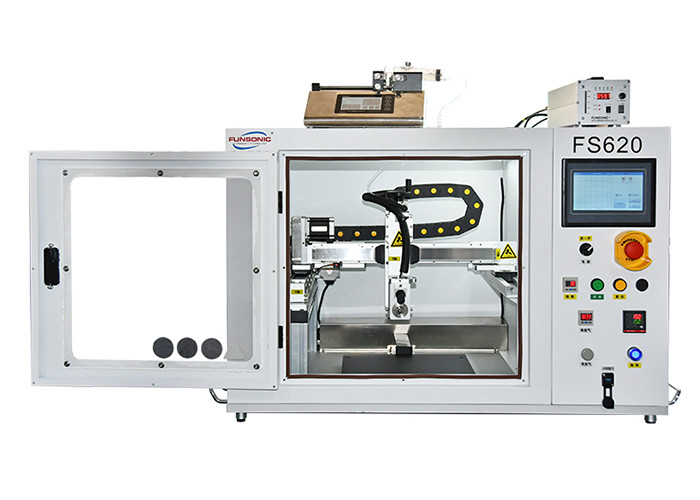

Ultrasonic Benchtop Vacuum Coating System

Description:

The desktop ultrasonic vacuum coating system adopts a sealed structure and can perform vacuum treatment on spraying. The maximum negative pressure can reach -0.058/-0.098 MPa, which can cope with some special spraying processes.
In the desktop ultrasonic vacuum coating system, all three axes of XYZ use stepper motors, and the module uses linear screw modules, greatly improving its service life. At the same time, it is equipped with double-layer tempered glass, thickened sealing rings, and reinforced hinges, which can improve sealing and vacuum degree.

Parameters:

Product Type	Intelligent Ultrasonic Precision Coating Machine desktop Type FS620V
Spray Nozzle Operating Frequency	20-200Khz
Nozzle Power	1-15W
Continuous Spraying Volume Max	0.5-10ml/min
Effective Spraying Width	2-100mm
Spray Uniformity	≥95%
Solution Conversion Rate	≥95%
Dry Film Thickness	20nm-100μm
Solution Viscosity	≤30cps
Temperature Range	1-60℃
Atomized Particles (Median Value)	15-40μm (distilled water), determined by the frequency of the nozzle
Diversion Pressure Max	≤0.05MPA
Input Voltage	220V±10%/50-60Hz
Exercise Mode	XYZ three-axis, independently programmable

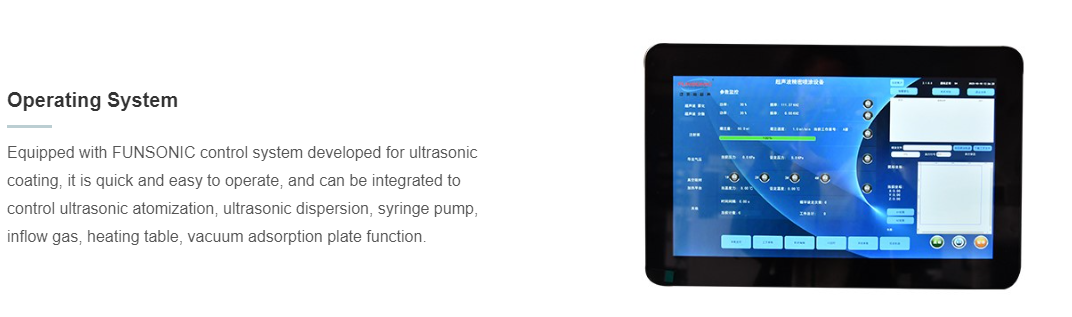

Control Mode	FUNSONIC spraying control system, PLC control, 13.3-inch full-color touch screen
Control Content	Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems
Liquid Supply Method	Precision injection pump
Ultrasonic Dispersion System (Optional)	20ml or 50ml, 40K, biological grade sampler
Rated Power of Ultrasonic Dispersion System	100W

Advantages :

1. Ultrasonic assistance: Ultrasonic waves can enhance the adhesion and uniformity of the film layer, and improve the physical and chemical properties of the film.
2. Vacuum environment: Coating under vacuum conditions can avoid oxidation and pollution, and improve the quality of the film layer.
3. Multiple materials: can be coated with various materials such as metals, alloys, ceramics, etc., suitable for different application needs.
4. Precise control: The system is usually equipped with precise temperature and pressure control devices to make the coating process more stable.
5. Miniaturization design: Desktop design makes the equipment more flexible and suitable for use in laboratories or small production lines.

Ultrasonic Benchtop Vacuum Coating System Enhance Production Line

Ultrasonic Benchtop Vacuum Coating System

Ultrasonic Benchtop Vacuum Coating System Enhance Production Line
