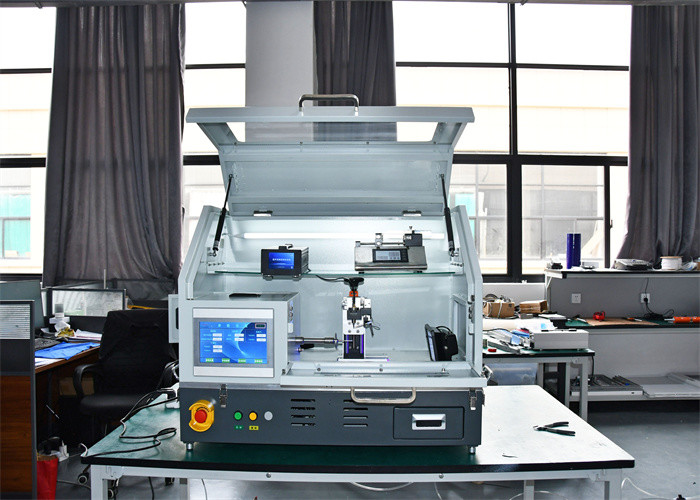

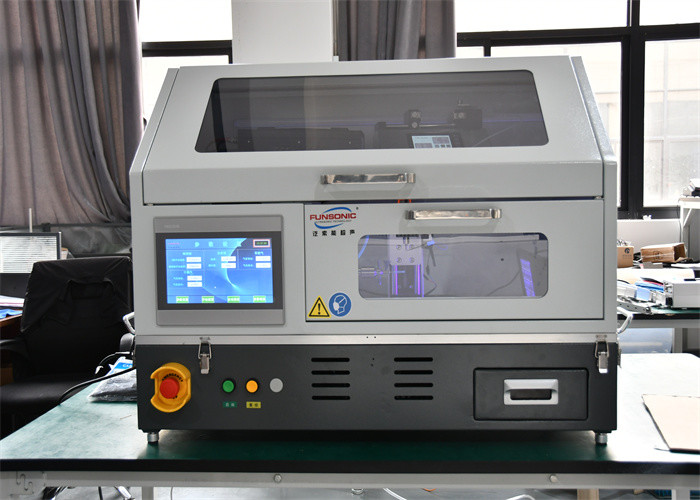

Stent Implantation Drug Coated Ultrasonic Spraying System with Micro 120Khz Nozzle
Description:
Ultrasonic drug eluting stent spraying is a method of using ultrasonic technology for drug spraying, mainly used in the field of vascular intervention therapy. This technology combines the advantages of drug eluting stents and ultrasonic spraying technology, aiming to provide long-lasting drug release and improve the therapeutic effect of vascular diseases.
Drug eluting stent is a type of vascular stent with drug coating. It releases drugs to the surrounding blood vessel walls while implanting blood vessels to inhibit the occurrence of vascular restenosis and proliferation. Ultrasonic spraying technology, on the other hand, utilizes ultrasonic vibration to spray a drug coating onto the surface of the stent, providing uniform and long-lasting drug coverage.
Parameters:
| Product Type | Stent Ultrasonic Coating System FS1006 |
| Spray Nozzle Operating Frequency | 120KHz (Optional 100150Khz) |
| Nozzle Power | 1-15W |
| Continuous Spraying Volume Max | 0.01-2ml/min |
| Effective Spraying Width | 1-5mm |
| Spray Uniformity | ≥95% |
| Solution Conversion Rate | ≥95% |
| Dry Film Thickness | 20nm-100μm |
| Solution Viscosity | ≤10cps |
| Temperature Range | -10-60℃ |
| Atomized Particles (Median Value) | 10-25μm (distilled water), determined by the frequency of the nozzle |
| Diversion Pressure Max | ≤0.05MPA |
| Input Voltage | 220V±10%/50-60Hz |
| Control Mode | X-axis servo motor+rotating R-axis, action can be independently programmed |
| Control Content | PLC control, touch screen+buttons |
| Liquid Supply Method | Precision injection pump |
| Operation | Clamp at both ends, supporting the lifting and clamping of excess conduit coils |
The process of ultrasonic drug elution stent spraying usually includes the following steps:
1. Prepare the stent: Select a suitable drug-eluting stent and ensure that the surface of the stent is clean and free of impurities.
2. Preparation of spray agent: Select a suitable drug solution or suspension as the spray agent, which includes the necessary drug components for treatment.
3. Ultrasonic spraying: Place the bracket in the ultrasonic spraying equipment and spray the spraying agent onto the surface of the bracket through ultrasonic vibration. The vibration of ultrasound can atomize the spray agent into small particles and evenly spray them onto the surface of the stent through airflow, achieving uniform drug coverage.
4. Drying and Curing: After completing the spraying, the bracket needs to be dried and cured to ensure the stability and adhesion of the drug coating.
The advantage of ultrasonic drug eluting stent spraying technology lies in providing uniform and long-lasting drug release, reducing the risk of vascular restenosis and proliferation. In addition, ultrasonic spraying technology also helps to improve the uniformity and adhesion of drug coatings, increasing the reliability of therapeutic effects
